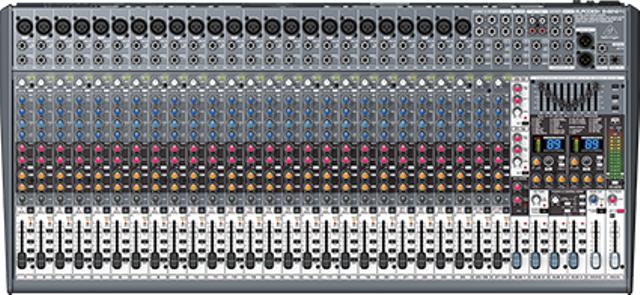

Behringer SX3242FX Pro 32 Channel Studio Mixer with FX
Out of stock
If you want classic analog handling but can’t skimp on superior digital effects and studio-grade mic preamps, the SX3242FX is your new best friend. This mixer’s 24 microphone inputs, 8 stereo inputs and 4 buses give you enough leeway to handle anything from a graduation speech to a 5-piece band to a whole church service with praise band and choir.
Classic Control, State-of-the-Art Sound
Each of the SX3242FX’s 24 mic inputs connects to our world-famous, studio-grade XENYX mic preamps. They are legendary for their high headroom, warm natural timbre and utter lack of background noise. Plug in a large-diaphragm condenser mic and track a vocal to hear XENYX’s rich detail and spaciousness. Plug in a dynamic mic and stick it inside a bass drum to appreciate the whopping headroom.
You May Experience Side-FX…
Whether you need to add a dab of reverb or delay to a live vocalist’s mic or warp a hard day’s studio session into psychedelic quicksand, the SX3242FX has you covered. We gave this mixer two independent studiograde 24-bit stereo FX processors with 99 awesome presets to provide the perfect sonic garnish. “Sure they’re great for live sound, but I have a lot of cool plug-ins for recording,” we can hear some of you saying. Truth be told, you never have too many effects. And when you hear the quality of the SX3242FX’s FX, you may want to give your overworked CPU a rest.
Naturally we gave you a whole palette of creative effects like reverb, chorus, flanger, delay and pitch shifter tones, as well as mind-bending multi effects to take your sound out of this world. But you also get problem solving workhorses like compression and gating plus final effects such as Ultramizer, Ultrabass and Exciter that can put a PA or studio mix over the top. And because there are two processors, you can cue two separate effects, then apply one or both to channels 1 through 28 — compression for the vocalist, reverb for the vocalist and snare drum, for example.
What the Heck is “British EQ”?
A good thing to have on your side when you start reaching for those channel equalization knobs. At a live concert or in the studio.Think of it as kinder, gentler, more musical EQ like the type found on classic British consoles from the 60’s and 70’s. Single malt scotch instead of Everclear. Home-baked cherry cobbler instead of an artificial cherry lollypop. British EQ’s distinct configuration of wider curves/lower Q and harmonic phase characteristics allows you to add or subtract EQ more generously than you can with conventional EQ circuit designs. When you add low midrange, you get a firmer sound instead of a nasty bonk. When you back high frequencies off a bit, treble backs off just a hair instead of turning muffled.
All SX3242FX mono channels have low and high shelving plus a sweepable “midrange” you can move anywhere from 100Hz to 8kHz. Think of it as your roving English troubleshooter.
Make Feedback Vanish So Your Audience Doesn’t
When it comes to suppressing feedback, the SX3242FX is like having a bloodhound trained to spot trouble frequencies a mile away.
The 9-band graphic EQ (which you can choose to apply to your main mix or monitor mix via the MAIN/AUX1 button) features the FBQ Feedback Detection system. It makes finding and adjusting critical frequencies a snap. Just push FBQ IN, then watch as LEDs on the individual EQ sliders light up, indicating which frequency bands are causing feedback. Simply adjust until the LED goes dim.
The Ins and Outs
Some manufacturers make what they call 32-input mixers that count stuff like CD/TAPE IN as an input. But the SX3242FX really gives you twenty-four honest mono channels plus eight stereo channels, making it easy to accommodate a variety of studio or live performance configurations. You can connect up to 24 microphones or other mono instruments and up to four stereo instruments (keyboards or tone modules, for example).
You can combine these input in four different sub-mixes (we call them buses). That allows you to blend multiple channels—say all the mics on a drum kit or all the backup singers’ mics—to a single fader, which is easier to adjust for the overall mix that goes to the PA speakers. You can also use one or more of the sub-mix buses to create custom monitor mixes for picky members of your band (“More me! More me!”).
A Zillion Ways to Change the Channel
At the top of each mono channel, you’ll find both a balanced XLR input with a XENYX mic preamp and a 1/4″ input. A phantom power switch located on the back near the main power switch accommodates condenser mics.
Next comes is an insert for connecting up individual signal processors or feeding a remote broadcast feed or multitrack recorder directly.
Trim control and level set LED let you adjust the channel’s input level for maximum headroom and minimum noise — the huge range of this control can handle anything from a very timid vocalist to a close-miked guitar amp stack.
Each mono channel features a 3-band EQ with semi-parametric mids (giving you control of the Mid level and a sweepable frequency with a boost or cut of 15dB) and a Trim control for adjusting input gain via a Level Set LED.
A Low Cut button eliminates the frequencies where unwanted infrasonics such as mic handling, P-pops or wind noise occur.
FX1 and FX2 dials add a blend of up to two effects, and AUX1 and AUX2 dials help create your monitor mix. Press the PRE button to send a raw, EQ-free signal to the monitors.
Near every mono channel’s fader you’ll find a 1-2, 3-4 and MAIN button. By engaging the MAIN button, the signal is sent to the main mix. Or, if you engage the 1-2 button, the channel becomes part of a bus. Twist the PAN control all the way to the left to assign it to Sub 1, or all the way to the right for Sub 2. The same principle applies to the 3-4 button.
A Mute button with accompanying LED cuts the signal from the channel, and a Clip LED helps you dial in a distortion-free post-EQ signal. The Solo button on individual channels routes the subgroup signal to the solo bus or Pre-Fader Listen—depending on whether the signal has been included in a subgroup.
Instead of XLR inputs, stereo channels 25-32 have left and right balanced/unbalanced line level inputs. Channels 25-28 feature the same controls as the mono channels, but with a four-band EQ that gives you control of HIGH, HIGH MID, LOW MID and LOW. This is especially useful for EQ’ing the critical midrange frequency content found in keyboard signals. Stereo channels 29 through 32, designed for signals that do not require EQ, have a simplified interface consisting of a Level, AUX1 and AUX2 dial. Can you say laptop backing track feeds, drum machines, tone modules, DJ mixers or CD players?
Finally, all four sub-mix buses feature an independent fader (naturally), Solo switch with bright LED, and assign buttons for routing them to Left or Right stereo channels.
Take On The World
Not every town on the planet uses the same voltage common in yours. Unfortunately, this sometimes doesn’t occur to jet-setting sound technicians until they’re 5,000 miles from home. With the SX3242FX, this is never an issue. The internal autorange power supply can run on anything from 100 to 240 V with noise-free audio, top-quality transient response and low power consumption.
Buy it Now. Teach Your Great Grandkids How to Run it.
BEHRINGER mixers last and last. We use top quality parts such as longwear faders, sealed rotary controls and premium circuit boards. We have 20 years of experience figuring out how to compensate for clumsy load-ins, spilled drinks, crazed guitarists and millions of road miles. The result is a mixer you can count on day after day and night after night.
Ultra-Low Noise Design 32-Input 4-Bus Studio/Live Mixer with XENYX Mic Preamplifiers, British EQs and Dual Multi-FX Processor
Premium ultra-low noise, high-headroom analog mixer
24 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
Neo-classic “British” 3-band EQs with semi-parametric mid band for warm and musical sound
2 independent studio-grade 24-bit stereo FX processors with 99 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
High-precision 9-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies
Peak LEDs, Mute, Main mix and subgroup routing switches, Solo and PFL functions on all channels
2 fully featured stereo input channels with 4-band EQ plus 2 additional stereo input channels with Level and pre-fader Aux controls
Inserts on each mono channel and main mix for flexible connection of outboard equipment
4 Subgroup outputs and additional Mono output with sweepable Low Pass filter for subwoofer application
4 Aux sends per channel: 2 pre/post fader switchable for monitoring/FX applications, 2 post fader (for internal FX or as external send)
Balanced Main mix outputs with ¼” jack and gold-plated XLR connectors, separate Control room, Headphone and stereo Tape outputs
Solo-In-Place and Pre-Fader-Listen functions plus full-featured Talkback section
Standby switch mutes all channels during breaks while background music is provided via CD/Tape inputs
Long-wearing 60 mm logarithmic-taper faders and sealed rotary controls
Internal autorange power supply for maximum flexibility (100 – 240 V~), noise-free audio, superior transient response plus low power consumption for energy saving
High-quality components and exceptionally rugged construction ensure long life
Conceived and designed by BEHRINGER Germany
