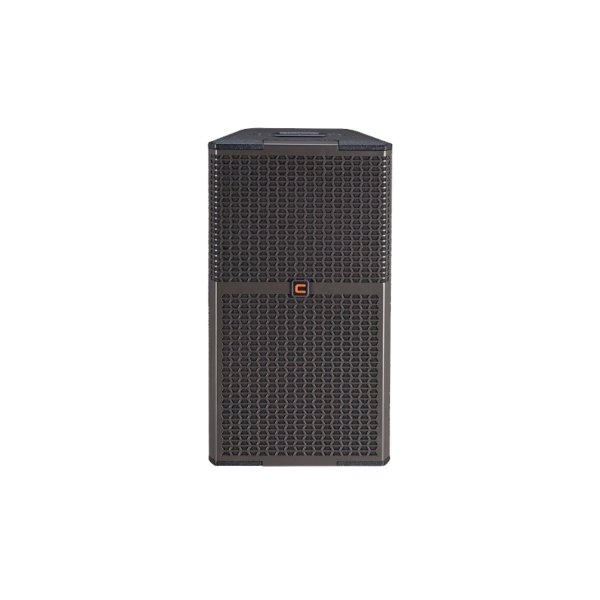

Celto Acoustique PM12 G2

R13,795.00 Incl.

SKU: CAPM12G2 Categories: ,

Description

Real 500W RMS power capacity (8 hours pink noise)
Natural sound and incredible holographic reproduction
Optimized for smooth frequency response in and out axis
Transmission Line Technology for true full range
Premium custom CELTO Acoustique Drivers
Proprietary 80ºx50º rotatable 6th order Polynomial horn
Birch plywood cabinet with tongue & groove assembly
Multiple M8 flying points for versatile installation

Power Handling (AES Standard) 500W RMS / 2000W Peak
Nominal impedance 8 Ohm
Frequency response (-6dB half space, no EQ) 40~22000Hz
Manufacturing Consistency tolerance ±2dB from 300 to 10000Hz
Average Sensitivity 97dB/W/m (wideband 200~16000Hz)
Maximum Calculated SPL @ 1m 124dB RMS / 130dB Peak
Nominal Directivity (-6dB) 80° x 50° above 1200Hz
Recommended low cut filter 35Hz 24dB/oct in full range mode,60-140Hz with subwoofer
Low Frequency driver 12″ CELTO driver, Ferrite magnet, 3” In / Out Voice coil
High Frequency driver 1” exit CELTO driver, Ferrite magnet, 1.7” Voice coil, HSP Annular Ring Radiator
Crossover Passive mode only 1500Hz, 12dB/oct on LF, 18dB/oct on HF
Flying hardware 16 M8 points
Connectors 2x NEUTRIK Speakon® NL4MP (1+/1- Link, 2+/2- Input & Link)
Floor Monitor use No
Pole mount 35mm dual top hat
Cabinet CNC made with tongue and grove assembly, 15mm birch plywood
Finish Textured Waterborne Black coating, PU foam behind Front grill
Size (WxHxD) 348x620x405 mm net, 460x510x740mm gross
Weight 24kg net, 29kg gross

Additional information

Weight 29 kg
Dimensions 46 × 51 × 74 cm
