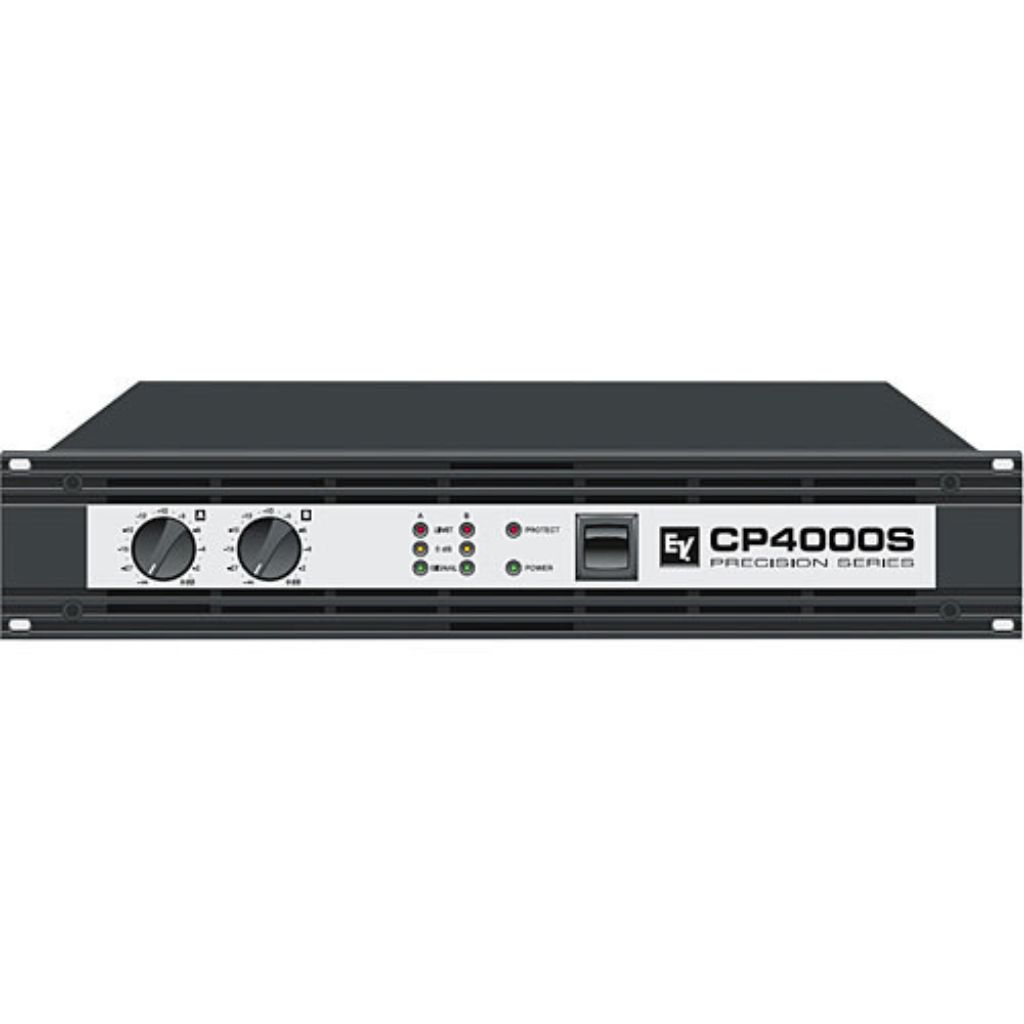

Electro-Voice CP4000S Power Amplifier

R43,995.00 Incl.

Add to Wishlist
Add to Wishlist
SKU: EVCP4000S Categories: ,

Description

Electro-Voice’s new Precision Series Compact amplifiers offer proven Precision Series performance and reliability in a new compact, lightweight format made possible by a highly efficient Class-H design, which generates considerably less heat. The flagship of EV’s Precision Series Compact amplifiers is the CP4000S. With up to 2×2100 watts into two ohms, and 2×1500 watts into four ohms, and only 8.7 kg it is both the most powerful and lightweight model in the line.

•Designed for Concert Sound, House of Worship, Performance & Sports Venues, Pro Music, Stadium Systems, and other applications.
•Up to 2 x 1600 W into 2 ohms
•XLR pass-though input connections
•The NL4 connection on output A also carries output B on pins +/- 2 to allow easy connection to bi-amped loudspeakers
•Extremely lightweight and highly efficient
•Class-H design
•Switch mode power supply
•Three-stage front-to-rear fans
•Complete protection package
•Classic EV amplifier dynamic headroom for real-world music and applications
•Built-in dynamic limiters

Specs

Amplifier Gain 32 dB
Continuous Rated Power (1 kHz, THD 1%) 2100 Watts @ 2 ohms
Continuous Rated Power (1 kHz, THD 1%) 1500 Watts @ 4 ohms
Continuous Rated Power (1 kHz, THD 1%) 900 Watts @ 8 ohms
Continuous Rated Power (20-20 kHz, THD<0,2%) 1200 Watts @ 4 ohms
Continuous Rated Power (20-20 kHz, THD<0,2%) 600 Watts @ 8 ohms
Electronics Type Amplifier
Input Sensitivity +7dBu
Intermodulation Distortion (SMPTE) 0.02 %
Maximum Bridged Output 4500 Watts @ 4 ohms
Maximum Bridged Output 3000 Watts @ 8 ohms
Network Control (IRIS-Net) No
Total Harmonic Distortion 0.05 %
Height 2RU 88.1 mm
Width 483 mm
Depth 368.8 mm
Weight Net 8.7 kg
