Description

KEY FEATURES

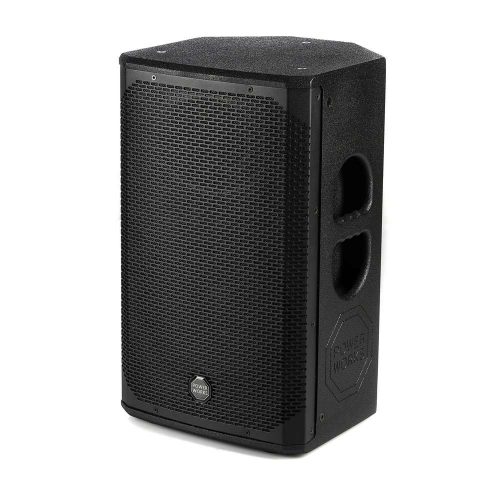

The ARTEMIS Series of Active Plywood enclosure have been designed as a high performance, light weight Audio Solution. There are 4 models in the range 8?, 10?, 12? and 15?. The speaker box can also be used as a stage monitor. Equipped with High Power Woofers and compression drivers. The speakers deliver high definition audio with a wide frequency response. Bi-Amped Active Speaker 600W RMS – 1200W Peak Power Amplifier Class-D (low-frequencies); Class-AB (high-frequencies) Graphic back-lit display DSP Display Sturdy and Lightweight Polypropylene Enclosure with black anti-scratch paint Standard D35mm tripod / pole hole 30° and 45° Stage Monitor Usable Angles. Clear Sound for Mobile and Installed Systems 2-Way Active Sound-Reinforcement Loudspeakers 15″ 1200W Peak 2-way Powered Loudspeakers with Ease of use DSP ARTEMIS Series speakers are part of a full range of PowerWorks Pro Audio product line up. Compact and lightweight, active loudspeakers provide a rich, extended low-end and natural high-frequency in a Plywood enclosure that is easily transportable. Two Integrated Amplifiers Backed by 600W (dynamic) of Class D/Class AB power and enhanced with easy-of-use DSP tuning functions, the ARTEMIS Series gives you all the power and DSP you need for both mobile and installed sound applications. Class D and Class A/B amplifiers are utilised to provide optimal response throughout the speaker’s frequency range. A 500W (continuous), Class D amplifier powers the 15-inch low-frequency driver, providing efficient, clean power for low end when you need it. A 50W (continuous), Class A/B amplifier powers the 1.35-inch high-frequency driver, delivering a natural sounding high end. The combination can deliver up to 136 dB SPL (max) of clear sound between 43 Hz and 19 kHz. Specially selected transducers and compression drivers with a powerful DSP, advanced housing material and anti-scratch black paint: all Components combined to offer the best quality and value for the most demanding Audio professionals. PowerWorks ARTEMIS series of 8?, 10?, 12″ and 15″ woofers are punchy and loud. There is a 1.35″ compression driver in the 8?, 10? and 12? versions and a 1,75? compression driver in the 15? version with both compression drivers delivering crystal clear sound. There are three inputs with selectable inputs of Line/Mic with separate level controls on 2 inputs. Fast and easy customisation. The ARTEMIS Series loudspeakers are equipped with an easy-to-use DSP that makes it simple to customise your loudspeakers with the push of a button. Versatile mounting for a variety of applications. The ARTEMIS Series of cabinets can be mounted in several ways, providing amazing versatility. The multi-angle enclosure for upright FOH (front-of-house) use and rubber feet on one side for on stage monitoring applications. Flying the speaker using M8 flying points or ground-stack it for portable applications. Mounting on a tripod with straight 0° or 7° degree angles, or atop a ARTEMIS-series subwoofer using an optional sub pole (not included). The integrated DUO TILT pole mount lets you aim the speaker level 0° or at a 7° downward tilt. The Speaker is easily transportable, thanks to its 2 side-mounted handles. Flying Cabinets Vertically or Horizontally. PowerWorks ARTEMIS full range cabinets can be mounted Vertically or Horizontally as above using the integrated flying M8 hardware points. Flexible inputs. ARTEMIS Series of full-range loudspeakers offer a choice of inputs so you can use them with a variety of sources. You get two combo XLR mic/Jack line inputs, each with a microphone/line level preamplifier and independent gain control. A stereo 3,5mm Jack connection signal input for use with smartphones, tablets, and other consumer audio devices. These signals can be combined with the internal mixer, and a balanced XLR Mix output lets you send the signals to other ARTEMIS-series loudspeakers or an Active Sub-Woofer. An Incredible Audio solution. With the power-amp configuration, carefully programmed DSP presets, versatile mounting options, flexible inputs with onboard mixing, and other professional features, ARTEMIS-series loudspeakers are an excellent choice for both mobile and installed sound applications. Easy transportability and extremely affordability.

SPECIFICATIONS

Frequency Response 43Hz – 19kHz / -10dB Max SPL 136 dB Low-freq. Transducer 15? Woofer 2.36? Voice Coil High-freq. Transducer 1.75? Compression Driver Coverage H90° x V60° Crossover Frequency 2,6kHz Low-Frequency Amplifier Class-D 550W RMS – 1100W Peak High-Frequency Amplifier Class-AB 50W RMS – 100W Peak Power Consumption 450W Fuse T3.15A-250V AC Mains 220/240V – 50/60Hz Input Connections 2 x COMBO (XLR + 1/4? Jack, balanced)+3,5mm Jack Output Connections 1 x XLR (Mix output, balanced) Housing material Plywood Cabinet 1.2mm Steel Grille Handles 2 on sides Tripod/Pole Hole Duo-tilt 0° and 7° Stage Monitor Use Angle 30° and 45° Speaker Size (WxHxD) 505 x 778 x 525 mm Packing Size (WxHxD) 515 x 790 x 535 mm Speaker Weight 28.2 kg Carton Weight 29.5 kg
