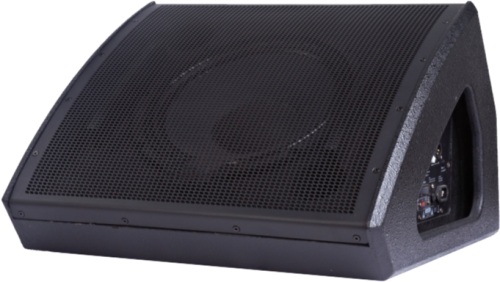

The ARTEMIS 15PM is an active 2-way coaxial stage monitor. The ARTEMIS series of monitors comprise of 3 models (10″, 12″ and 15″) equipped with Class D amplifiers + Class AB amplifiers delivering a combined 250 Watts RMS (for ARTEMIS 10PM) or 350 Watts RMS (for ARTEMIS 12PM and 15PM) The monitor wedge’s coaxial design, provides an even crystal clear sound reproduction. The ARTEMIS Active monitors incorporate a switch to use as a Monitor or FOH (Front of House) All wedges of the ARTEMIS monitor series feature a very sturdy front grille design, two handles integrated on the side of the plywood cabinet and a 35mm pole mount on one side panel which allow for mounting of the monitor onto a tripod speaker pole to be used as FOH (Front of House).
Active Coaxial stage monitor Pole mountable for FOH Front sturdy grille design Integrated side handles. Active Stage Monitor ARTEMIS-15PM features a custom design 12″ coaxial mounted speaker with a 1″ exit throat 1,35? compression driver. Active coaxial stage monitor for live and playback applications. Features a bass speaker (15?) and compression driver (1.35?) mounted on the bass speaker. The coaxial configuration allows perfect alignment of the acoustic centres of the speaker. The bass-reflex cabinet provides deep bass and high SPL Bi-amplification design with a high dynamic Class D amplifier delivering 300W RMS to the 15? Speaker and a Class AB amplifier delivering + 50W RMS to the Compression Driver. Comes in a rugged Plywood housing with scratch-resistant multi-layered lacquer surface and an impact-resistant steel grille. Two ergonomic integrated side carrying handles. The monitor has 80° x 80° nominal coverage Also includes a 35mm flange for stand installation for FOH use.
Frequency Response 45Hz – 18kHz Max SPL 124 dB Low-freq. Transducer 15″ Woofer 3″ Voice Coil High-freq. Transducer 1? Exit 1.35? Compression Driver Coverage Low-Frequency Amplifier Class-D 300W RMS – 600W Peak High-Frequency Amplifier Class-AB 50W RMS – 100W Peak AC Mains 220/240V – 50/60Hz Power Consumption (Average/Peak) 250W / 500W Fuse T6.3AL-250V DSP Input Connections 1x XLR/TRS Multicon connector, LINK Connectors 1x XLR Link Output with Mono/Stereo selection Housing Material Plywood Grille Steel/1mm Flyable No Handles 2 – Integrated 1 on each side Tripod/Pole Hole Standard D35mm Speaker Size (WxHxD) 565 x 665 x 475 mm Packing Size (WxHxD) Speaker Weight 23.24 kg Carton Weight ARTEMIS Monitor Series Family ARTEMIS 10PM 10? Active Professional Monitor Speaker Frequency Response 60Hz – 18KHz Max SPL 121 dB Amplifier Class D + Class AB Power Output 250 Watts RMS 1 x Balanced 6.3mm TRS/XLR Combo Link Out: XLR Plywood Multi-Layered Painted Black Height 535 mm Width 450 mm Depth 403 mm Weight 14.08 kg ARTEMIS 12PM 12? Active Professional Monitor Speaker Frequency Response 53Hz – 18KHz Max SPL 123 dB Amplifier Class D + Class AB Power Output 350 Watts RMS 1 x Balanced 6.3mm TRS/XLR Combo Link Out: XLR Plywood Multi-Layered Painted Black Height 565 mm Width 521 mm Depth 448 mm Weight 16.84 kg ARTEMIS 15PM 15? Active Professional Monitor Speaker Frequency Response 45Hz – 18KHz Max SPL 124 dB Amplifier Class D + Class AB Power Output 350 Watts RMS 1 x Balanced 6.3mm TRS/XLR Combo Link Out: XLR Plywood Multi-Layered Painted Black Height 665 mm Width 565 mm Depth 475 mm Weight 23.24 kg
