Description

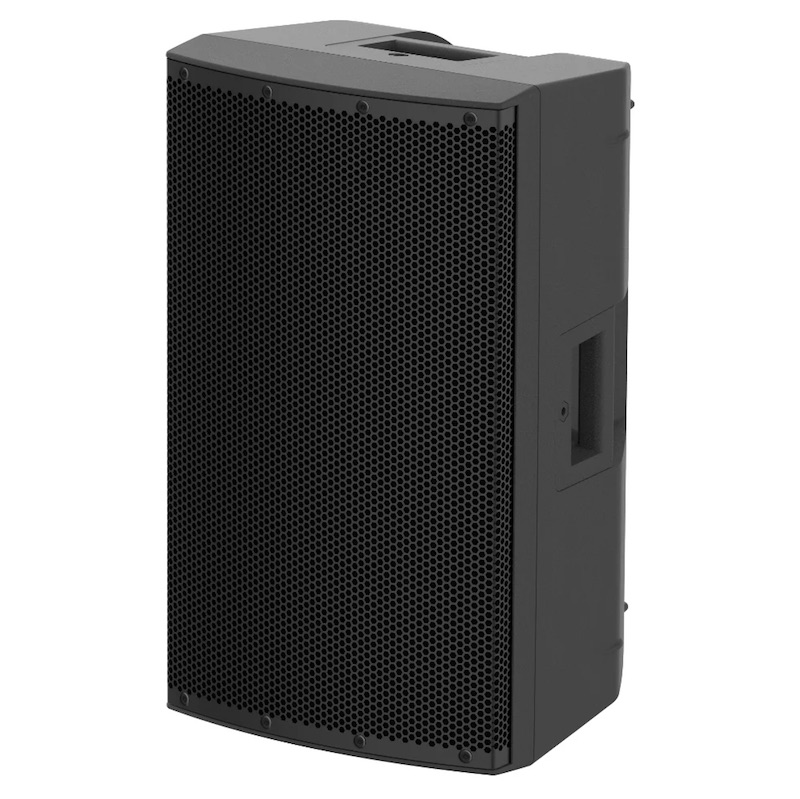

The Jupiter series have been designed as a high performance Speaker system. A light weight sound solution. There are 3 models in the range of 10″ 12″and 15″. The loudspeaker box can work as a stage monitor. Equipped With high power woofers and compression drivers. The full range loudspeakers deliver high definition audio and wide frequency response. Compression drivers were utilized for their high sensitivity and extended dynamic range.

MODEL JUIPITER 15A DSP

Freq. Response 41Hz – 19kHz

Power RMS/Peak 400w/800w

Max SPL 131dB

Coverage Angle H90° x V60° constant directivity horn

Transducer LF 15″Woofer 3″Voice coil

Transducer HF 1″ Exit-1″ Compression Driver

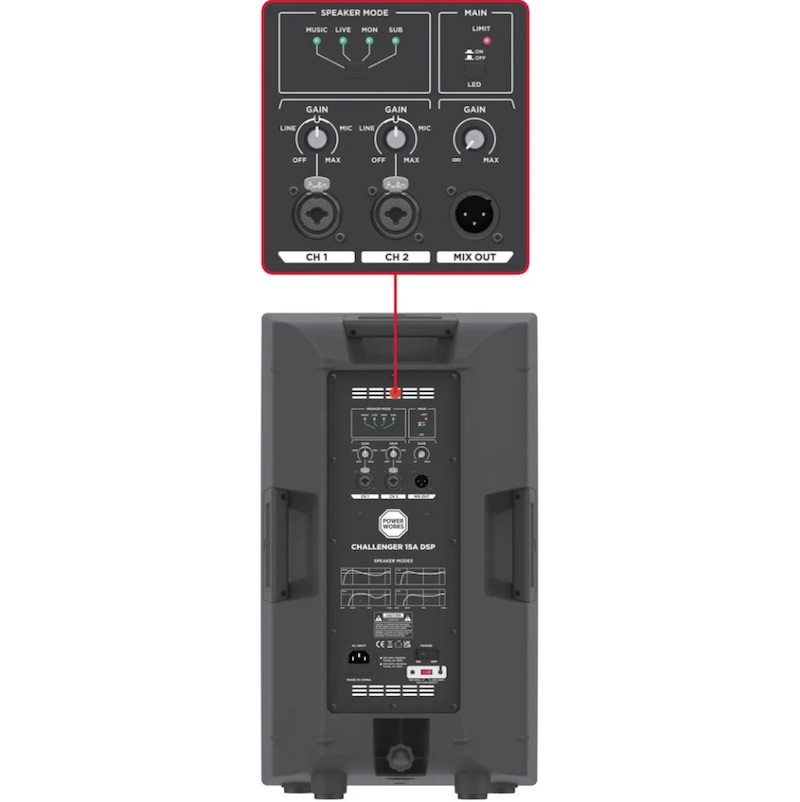

• Built in 2 Channel mixer integrated into the Sub-Woofer.
• Channel 1 and 2: 2 x XLR/6,3mm Combo MIC/LINE
• DSP with 4 presets (MUSIC, LIVE, MON, SUB)
