Description

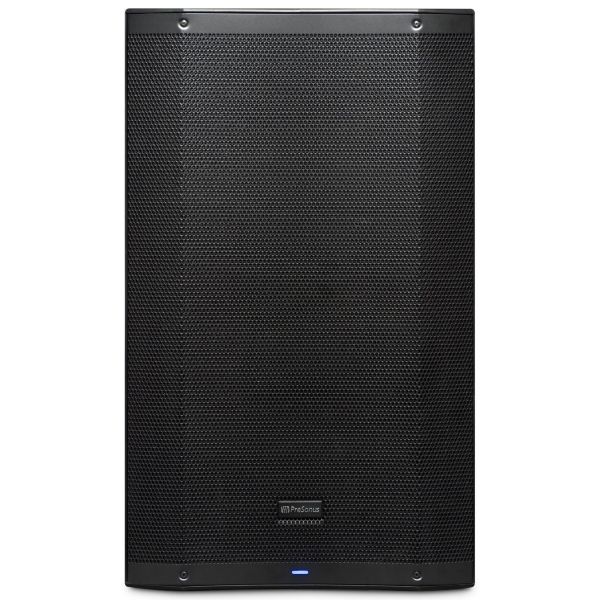

AIR12: Versatile, customizable, and easy to transport. Compact and lightweight, AIR12 active loudspeakers provide a rich, extended low-end and natural high-frequency extension in an enclosure that will easily fit in the backseat of a small car. Backed by 1,200W (dynamic) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR12 gives you all the power and tools you need for both mobile and installed sound.

Technical Specifications Acoustic Performance Configuration Active 2-way Frequency Range (-3 dB) 51 Hz to 20 kHz Frequency Range (-10 dB) 48 Hz to 20 kHz Maximum Output 123 dB SPL Nominal Dispersion (HxV) 90°x 60° Transducer LF Driver 12″ (2.5″ voice coil) HF Driver 1.35″ compression Amplifier Amplifier Type Class D (LF), Class AB (HF) Total System Power 1,200W dynamic LF Power 900W HF Power 300W Connections and Controls Inputs 2 x XLR/TRS mic/line combo; 1 x 1/8″ TRS stereo Outputs 1 x XLR Mix Out DSP DSP Features LCD screen with EQ and multiple presets Enclosure Cabinet H-PP molded Grille 1.2 mm steel Handles 1 top, 1 side Flypoints 2 top, 1 back Pole Mounting Dual position (0°, 7.5°)* Dimensions (H x W x D) 16.9″ x 16.5″ x 27.6″ (430 mm x 420 mm x 700 mm) Weight 37.5 lbs (17 kg) Power Power Input 115V / 230V ~50/60 switchable Maximum Current 3.5A (230V-50 Hz), 7A (120V)
