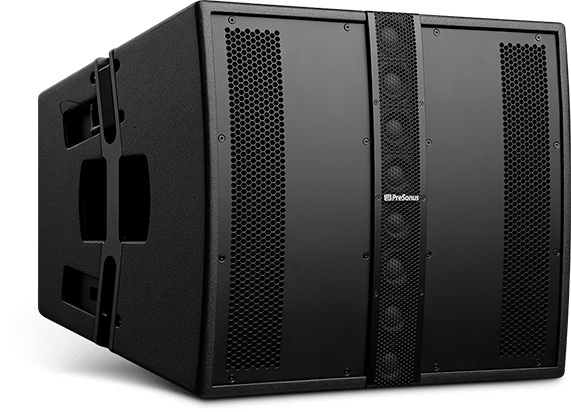

Presonus CDL12 Active Speaker

SKU: PRESCDL12 Categories: ,

Description

Constant Directivity: Consistent, Coherent Sound. The CDL12’s integrated PDA-1000 500W x 500W Class D power amplifier features onboard DSP presets to facilitate and simplify arrayed configurations. For more advanced applications, each CDL12 can be connected to a standard LAN network and remotely controlled using Worx Control software for macOS® and Windows®. When combined with the CDL12, Worx Control provides speaker-management tools that include compression, limiting, and 800 ms of delay. An 8-band EQ with individually selectable filters (High Pass, Low Pass, High Shelf, Low Shelf, Notch, All Pass, Band Pass) is also provided to compensate for room anomalies. Speakers can be grouped and managed individually or together. Performance monitoring indicators allow you to monitor temperature and signal levels remotely. The PreSonus® CDL12 is the result of years of research and development, combining the best attributes of point source and line array technology into a unique patent-pending design. Based on the Constant-Directivity Two-Way Loudspeaker System design presented at the 143rd AES Convention in New York by Hugh Sarvis and Don Keele, the CDL12 radiates a highly focused pattern with consistent SPL throughout the frequency response range, both on- and off-axis. The result is clear, articulate speech intelligibility and natural music reproduction. A unique look with a unique result Each CDL12 consists of eight 2-inch drivers aligned in a segmented circular-arc high-frequency array centered in front of a 12-inch woofer. The output of the low-frequency driver travels from the same acoustic axis as the high-frequency array so that the pattern always radiates from the center of the CDL12. This is true whether the CDL12 is used individually on a tripod speaker stand or as part of an acoustically coupled vertical array with up to six enclosures. Because of this, the CDL12 avoids the near-field anomalies that can interfere with the sound quality of a traditional line array. This makes the CDL12 ideally suited for a broader range of venue sizes, creating a far-field response almost immediately as the sound is projected from the center of the enclosure. Technical Specifications Acoustic Performance Configuration Active 2-way Frequency Response (-3 dB) 48 Hz – 18 kHz Frequency Response (-10 dB) 42 Hz – 19 kHz Nominal Coverage (-6 dB) 120° x 20° per enclosure Maximum Peak SPL 131 dB Crossover Frequency 420 Hz Transducer LF Transducer 12″ (2.5″ voice coil) HF Transducer 8 x 2″ (1″ Voice Coil) Amplifier Type Class D Total Power Output 2000W Peak, 1000W Program (500W RMS) LF Power 1000W Peak, 500W Program (250W RMS) HF Power 1000W Peak, 500W Program (250W RMS) Cooling Free air convection Rated THD <0.05% (20 Hz – 20 kHz) Dynamic Range 119 dB (A-weighted) Bandwidth 20 Hz – 20 kHz Mains Connection powerCON™ In and Out Connections and Controls Input Channels 1 Line Input Connector Types 1 XLR Line Input Impedance 40 kO Maximum Input +4 dBu Output Connector Direct Line Out (XLR) Networking Dante® (Audio and Control), Control (only) via Locking Ethernet Controls Preset Select HPF On/Off Indicators Over Temperature, Signal, -3 dB, Limiter, Clip, Network Status DSP Effects Compression, Limiting, Delay, 8-band EQ and preset selection via WorxControl HPF 90 Hz, 4th-order Butterworth Bit Depth 24-bit Sample Rate 48 kHz Enclosure Material 15 mm Eucalyptus plywood Finish Chemline™ Polyurea Grille Powder-coated steel Dimensions (HxWxD) 18.6″ x 20.8″ x 17.5″ (473 mm x 529 mm x 444.5 mm) Unit Weight 65 lbs. (29.5 kg) Safety Amplifier Protection Over-current, DC, over/under-voltage, over-temperature, high frequency Transducer Protection Limiter Power AC Power Input 90-260V~, 50-60 Hz AC Power Consumption (1/8 Power) 4.2 Amps Suspension Mounting Rigging Points Integrated Rigging (10:1 load) Mounting Dual-position pole mount (0° and 10°) 35 mm

Additional information

Weight 30 kg
Dimensions 47 × 53 × 45 cm
