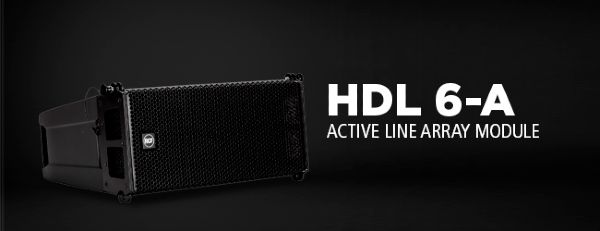

RCF DLine HDL6-A Active Line Array Module 1400w

R34,795.00 Incl.

Out of stock

SKU: RCFHDL6A Categories: ,


ACTIVE LINE ARRAY MODULE The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel digital amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.5″ woofers for a solid bass reproduction plus a high powered 1.7″ voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. FEATURES 1400 W, two-way amplification 131 dB max SPL 1.7? voice coil neodymium c. driver 2 x high power neodymium 6.5?woofers 48 kHz, 32 bit DSP processing Symmetrical design Extremely low weight FiRPHASE processing ACOUSTICAL SPECIFICATIONS Frequency Response -3 dB:65 Hz ÷ 20 Hz Max SPL:131 dB Horizontal coverage angle:100° Vertical coverage angle:10° Compression Driver:1.0? neo, 1.7? v.c. Woofer:2 x 6.5? neo, 2.0? v.c. INPUT/OUTPUT SECTION Input connectors:XLR male Output connectors:XLR female Input sensitivity:+4 dBu PROCESSOR SECTION Crossover frequencies:900 Hz Protections:Thermal, RMS Limiter:soft limiter Controls:HF correction AMPLIFIER SPECIFICATIONS Total power:1400 W PEAK High frequencies:400 W PEAK Low frequencies:1000 W PEAK Total power:700 W RMS High frequencies:200 W RMS Low frequencies:500 W RMS Cooling:convection Connections:Powercon in-out CABINET Cabinet Material:Composite PP Hardware:array fittings Handles:2 back Colour:black PHYSICAL SPECIFICATIONS Height:237/9.3 mm/inch Width:470/18.50 mm/inch Depth:377/15.0 mm/inch Net Weight:11.5/76.05 kg/lbs
