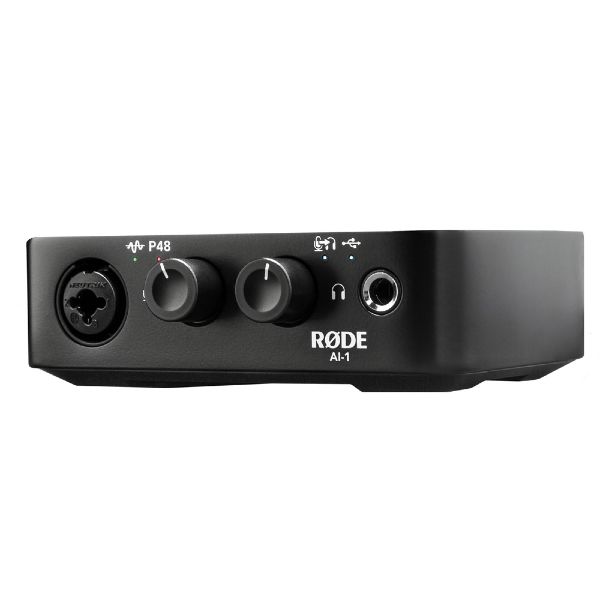

Rode AI-1 Audio Interface
R3,165.00 Incl.
Description
RØDE’s AI-1 Audio Interface is packed with incredible technology to ensure recording on your computer is easy, versatile and sounds superb. The AI-1’s single input is a NeutrikTM Combo Jack, which takes both a 3-pole XLR (common to most microphones) and a quarter-inch jack common to most electric instruments like guitar, bass et al. Layering tracks is as easy as plug in, set level and go.
Not only does the AI-1 deliver crystal clear audio to your computer software, but headphones have never sounded sweeter thanks to the discrete studio-quality headphone output and level control. AI-1 Audio Interface Specifications Computer Connectivity USB Form Factor Desktop Simultaneous I/O 1 x 2 Number of Preamps 1 Phantom Power Yes Bit Depth 24-bit Sample Rates 44.1 kHz 48 kHz 88.2 kHz 96 kHz Analog Inputs 1 x Neutrik XLR-1/4″ combo Analog Outputs 2 x 1/4″ (impedance balanced) 1 x 1/4″ (headphones) Direct Monitor Yes USB 1 x USB Type C Bus Powered Yes OS Requirements Mac OS 10.10 or later Windows 7 or later Power USB bus-powered Depth 100mm total (with knobs) chassis: 88mm Width 124mm Height 38mm Weight 1lb 3.7oz 560g Input XLR/MIC INPUT Dynamic Range 104dBA Equivalent Input Noise @ Maximum Gain (Source Impedance 150 ohms, 20Hz-20kHz, A-weighted) -128dBA Frequency Response (Measured after ADC) 20Hz – 20kHz better than ±1dB Gain Range 0dB – >45dB Gain Range 1.3k Ohms INSTRUMENT INPUT Dynamic Range 99dBA Frequency Response (Measured after ADC) 20Hz – 20kHz better than ±1dB Gain Range 0dB – >45dB Input Impedance 900k Ohms Output MONITOR OUTPUTS Maximum Output Level -6dBu Frequency Response 20Hz – 20kHz better than ±1dB HEADPHONE Max output power at 1% THD 32Ohms – >210mW 300Ohms – >390mW
Additional information
Weight | 1 kg |
---|---|
Dimensions | 40 × 30 × 10 cm |
