RODE Broadcast Condenser Microphone

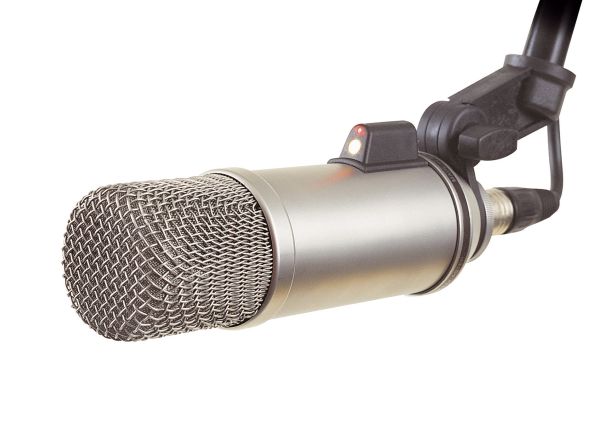

HF2 1″ capsule with gold plated diaphragm On-Air indicator LED Ultra-low noise Voice tailored low-cut feature Internal pop-filter 10 year extended warranty when you register your microphone The RØDE Broadcaster is a large diaphragm, end-address condenser microphone designed to provide the ultimate performance for broadcast vocal applications. Its rich, full quality tailored response has an emphasised proximity effect that has made it a standard in radio stations the world over.
It is equally suitable as a voice-over microphone for film and television The Broadcaster features an internal pop filter, designed to minimise plosives sounds that can overload the microphone capsule and distort the audio output. In addition to the Broadcaster’s native 20Hz-20kHz response, a selectable high-pass filter at 75Hz is available which will prevent low-end noise such as air conditioners and traffic from being recorded. The Broadcaster features an innovative ‘On-Air’ indicator on the body that can be wired for external activation by the ‘Channel On/Mute’ function on many consoles. If not connected to a console or switch, the indicator will remain lit whenever the microphone has power. The RØDE Broadcaster microphone is designed and made in Australia, and covered by RØDE Microphones’ industry leading 10 year warranty. Broadcaster Specifications Acoustic Principle Pressure Gradient Active Electronics JFET impedance converter with bipolar output buffer Capsule 1.00″ Polar Pattern Cardioid Address Type End Frequency Range 20Hz – 20kHz Output Impedance 40O Maximum SPL 128dBSPL Maximum Output Level 2.0mV (@ 1kHz, 1% THD into 1KO load) Sensitivity -34.0dB re 1 Volt/Pascal (20.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz Equivalent Noise Level (A-weighted) 14dBA Power Options +24V phantom power+48V phantom power Weight 577.00g Dimensions 167.00mmH x 50.00mmW x 65.00mmD
