Description

ADAM Audio Sub10 MK2

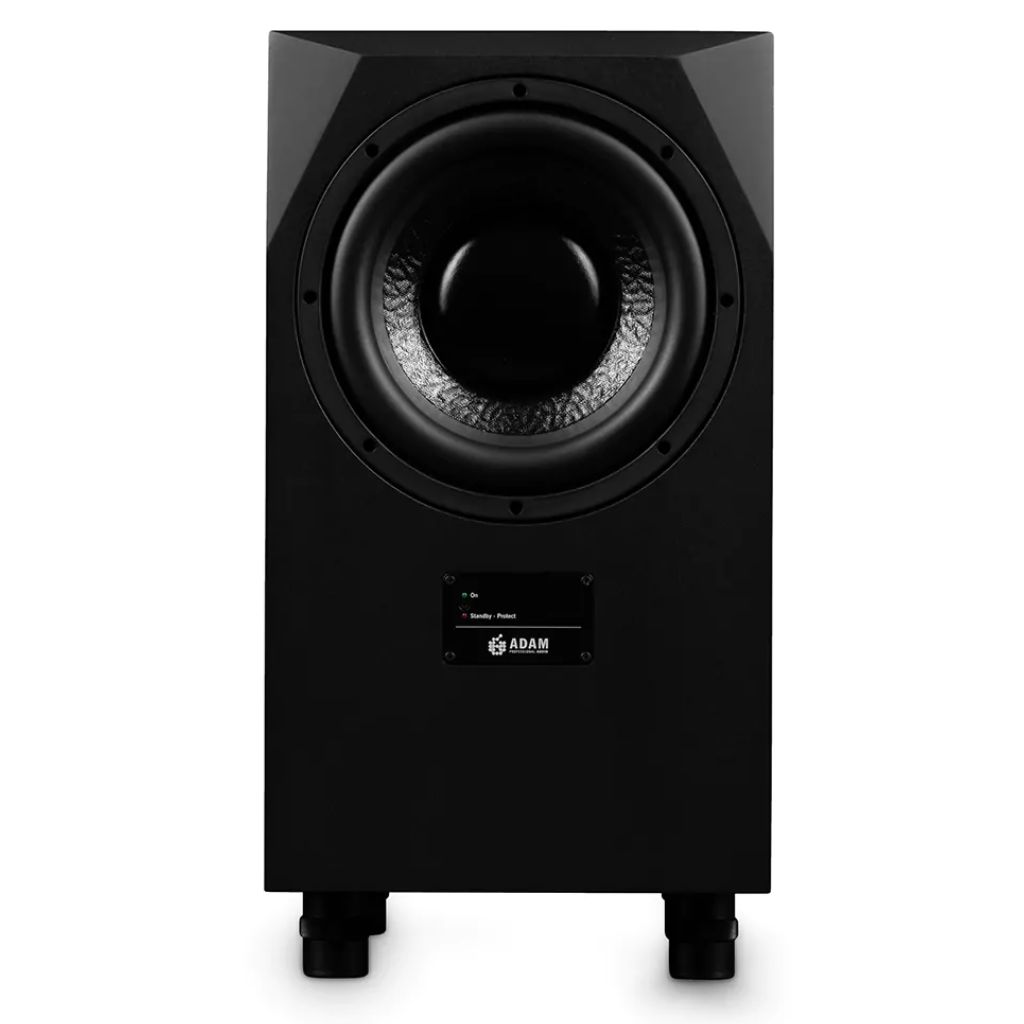

The Sub10 MK2 is a powerful subwoofer designed to extend the low frequency capabilities of any near or midfield monitoring system down to 25Hz.

A sturdy special woofer with extended cone travel and a heavy-duty coil have been optimized for accurate reproduction from a bass reflex enclosure. The down-firing bass reflex tube avoids intrusive ventilation noise because of its generous size and shape. The PWM amplifier produces over 90% efficiency and can handle critical passages without overheating for long periods of time. An additional output allows you to cascade as many subwoofers as needed.

The Sub10 MK2 subwoofer provides a precise combination of low cutoff frequency (-3 dB at 25Hz) and an undistorted high sound pressure level (113dB at 1m).

• 10“ Subwoofer (paper)
• Power RMS / Music: 200 W / 300
• Frequency response: 25 Hz – 150 Hz
• peak SPL at 1 m: ≥113 db

Technical Data

• General Data

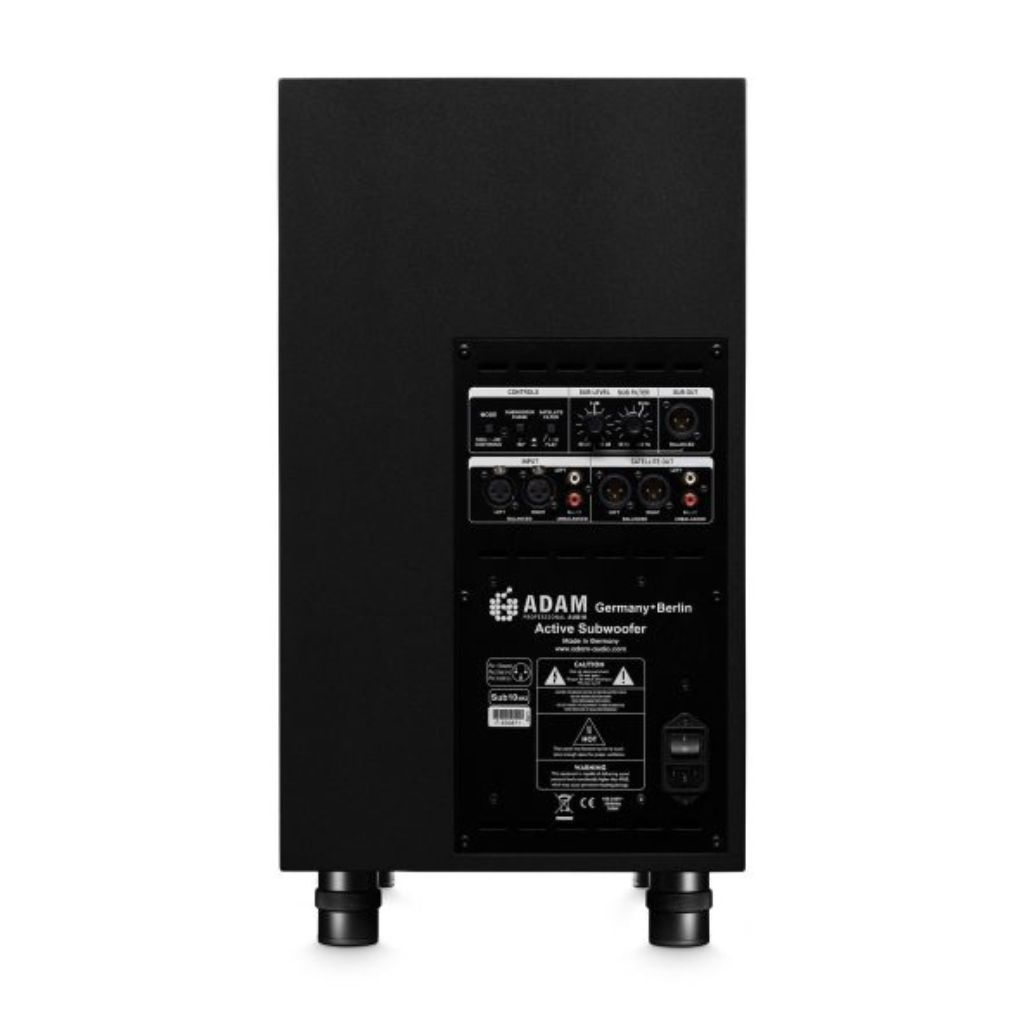

  • Panel: Rear
  • Weight: 46.3 lb (21 kg)
  • Height x Width x Depth: 22″ (560 mm) x 12″ (300 mm) x 15.5″ (400 mm)
  • Warranty: 5 years (2 years warranty plus 3 years optional with product registration)
  • Delivery Contents: Power cord, manual
• Audio Input Connectors
  • Analog: XLR /RCA
  • Input Impedance: 10 kOhm
• Amplification
  • Type: PWM
  • Amp. Power RMS / Music: 200 W / 300 W

• Acoustics
  • Frequency Response: 25 Hz – 150 Hz
  • THD > 60 Hz: ≤1 %
  • Max. peak SPL at 1 m: ≥113 dB
  • Crossover Frequencies: 50 – 150 Hz
• Driver
  • Basket Diameter: 10″
  • Voice Coil Diameter: 2″ (50 mm)
  • Cone Material: Paper
