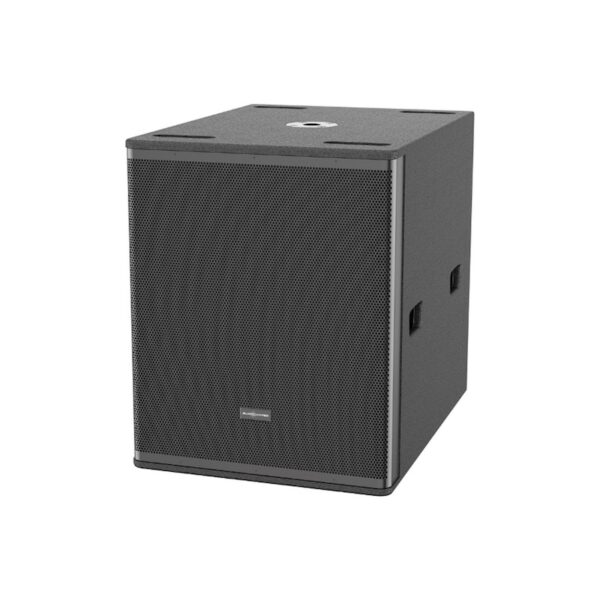

Audiocenter MA118 Active DSP 18″ Subwoofer

R12,895.00 Incl.

SKU: ACNA118A Categories: ,


Specifications: MA118

3 low-pass filters (80Hz, 100Hz, 120Hz) in MA118 are available to choose according to different venues and music styles. There is also phase switch. All connectors and function buttons are on the back panel.
MA118 subwoofer is with 1-way XLR for input and output. Signals can be sent to different speakers for sound distribution.

Type Active DSP-controlled Compact Subwoofer
Frequency Response (-6dB anechoic chamber) 32Hz-150Hz
Maximum Calculated SPL/1M(Continuous/Peak) 128dB/134dB
LF Driver Customized driver, 4”voice coil
Amplifier Circuitry Class D
Power (Peak) 2000W
Frequency Response (1W 8Ω 2ch) 20Hz-20KHz(±1dB)
Intermodulation Distortion <0.05%
Total Harmonic Distortion <0.05%
Protection DC protection, short circuit protection, overheat protection, input overload
protection, output overload protection, soft startup protection, overvoltage
protection, undervoltage protection.
Cooling System Cooling with fans, air convection
Processor 96KHz signal sampling frequency,
24bit precision
Presets 80Hz, 100Hz, 120Hz
Crossover Controlled by DSP
Signal Input 1× female XLR
Signal Output 1× male XLR
Power Input 3 pin plug
AC Power Operating Range 100V~130V or 220V~240V (±10%,50/60Hz)
Cabinet Material CNC made of excellent wood
Cabinet Color Black is standard and default color.
Consult with Audiocenter sales team
for other customized colors
Pole Mount M20 base Φ35mm
Dimension (W×H×D) 510x632x695mm
Net Weight 45.0Kg

Additional information

Weight 45 kg
Dimensions 51 × 63 × 70 cm
