Description

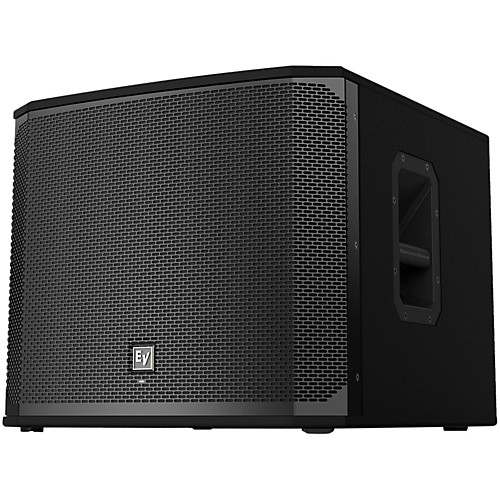

1600 W (peak), 133 dB peak SPL on the EKX-15S utilizing highsensitivity transducers designed and engineered by EV. Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish. Large slot ports for low distortion and excellent bass extension. Metal grille reinforcement bar (two bars on the EKX-18S). M20 threaded pole mount plate. Axial Sensitivity (SPL, 1 W @ 1 m) 95 dB Maximum SPL 133 dB Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating Nominal Impedance 8 O Power Handling (Continuous / Peak) 400 W/1600 W Frequency Response (-3 dB) 60 Hz – 100 Hz Half Space Measurement Frequency Response (-10 dB) 40 Hz – 300 Hz Half Space Measurement Recommended High-Pass Frequency 35 Hz LF Transducer EVS-15C 381 mm (15 in) Minimum Impedance 7.5 O Connector Type Dual NL4 Enclosure Material 15 mm, plywood with EVCoat Grill 18 AWG steel with powdercoat Height 455 mm (17.91″) Width 530 mm (20.87″) Depth 551 mm (21.69″) Weight Net 24.9 kg (54.9 lbs) Shipping Weight 31.3 kg (69 lbs)
