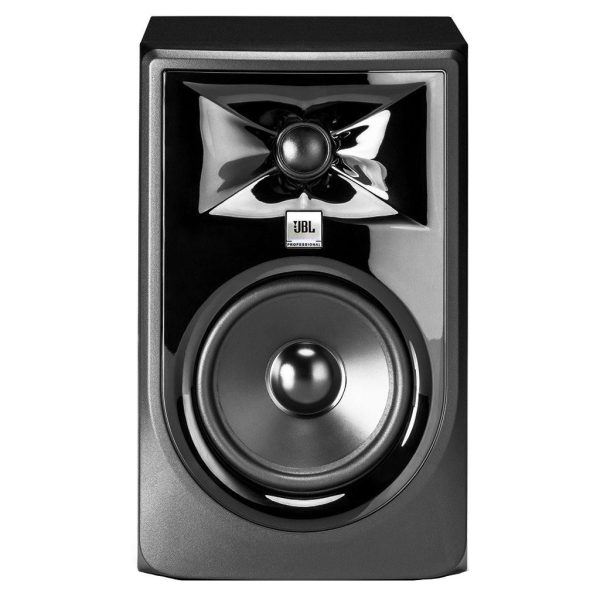

JBL 305P MkII Powered 5″ Two-Way Studio Monitor (single)
R4,295.00 Incl.
Description
Featuring patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and, sporting a sleek, modern design, JBL 305P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.
- Patented Image Control Waveguide for detailed imaging and a broad, room-friendly sweet spot
- Next-generation JBL transducers for optimized transient response and improved linearity
- Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels
- Dual integrated, custom Class-D amplifiers provide 82 watts of power for high output and dynamic range
- New Boundary EQ settings compensate for low frequency variants introduced by the environment
- HF Trim switch adjusts high-frequency output to room acoustics or personal preferences

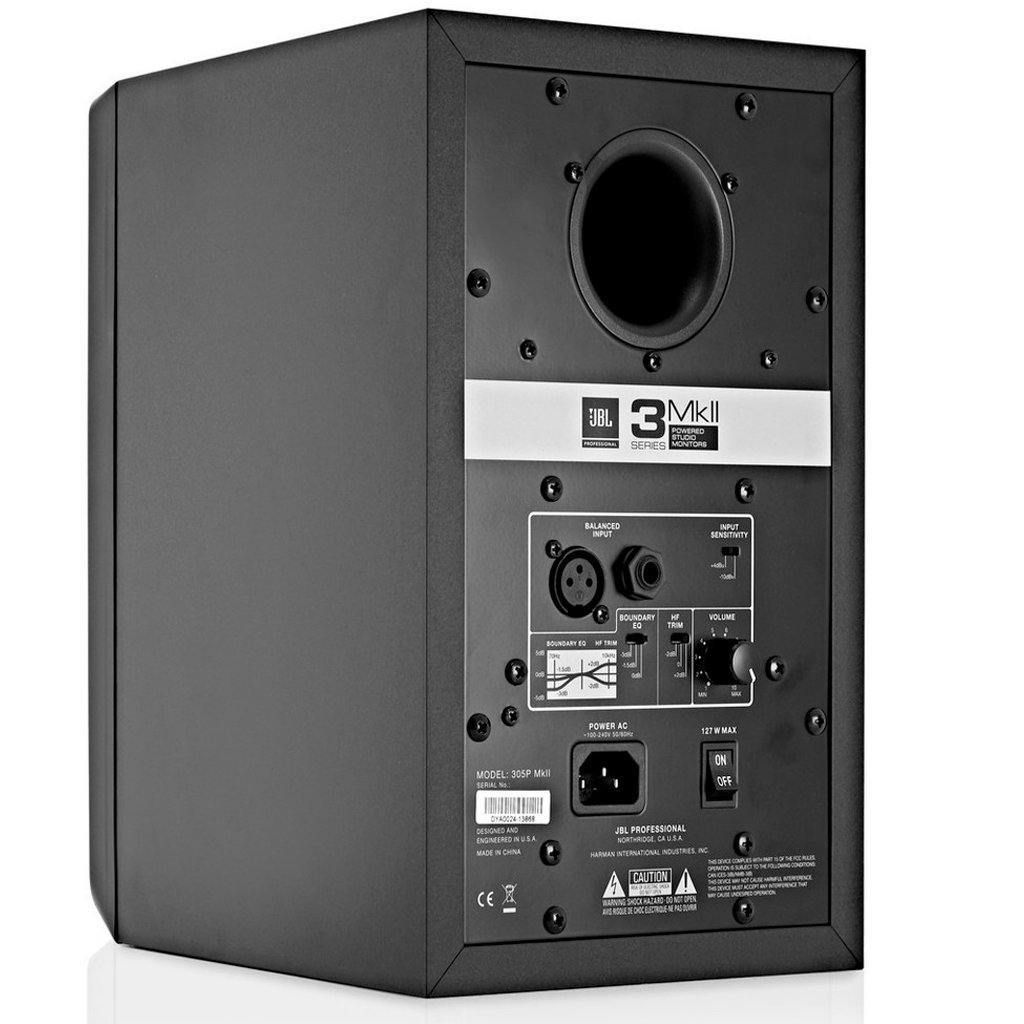

- Flexible connectivity with balanced XLR and 1/4″ TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control
- Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space
- Strenuous JBL 100-hour full-power test ensures years of reliability
- Sleek, modern design provides a visual upgrade to any studio
Specs
-
- LF Driver Size
- 127 mm (5″)
- HF Driver Size
- 25 mm (1″)
- HF Driver Type
- Soft dome
- Crossover
- 1725Hz 4th order acoustic Linkwitz-Riley
- Power Configuration
- Bi-amplified
- HF Driver Power Amp
- 41 W Class D
- LF Driver Power Amp
- 41 W Class D
- Frequency Response
- 49Hz – 20kHz (±3dB)
- Frequency Range
- 43Hz – 20kHz (-10dB)
- Low Frequency Extension
- 43Hz (-10dB)
- Maximum Continuous SPL
- 94dB
- Maximum Peak SPL
- 108dB
- Maximum Peak Input Level
- +6dBV / +20.3dBu (-10dBV / +4dBu)
- System Distortion Criteria
- <10% THD at maximum output with full compressor / limiter engagement
- Electrical Distortion Criteria
- 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
- Signal to Noise Ratio
- 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
- Coverage Pattern
- 120° x 90° (horizontal x vertical)
- HF Trim Control
- -2dB, 0dB, +2dB
- Boundary EQ
- LF Shelf @ 50Hz
- AC Input Voltage
- 100 – 240VAC (±10%), 50 / 60Hz
AUDIO INPUT
Analog Input Types1 x XLR female, 1 x TRS female, balancedInput Sensitivity92dB / 1m (-10dBV Input)
DIMENSIONS
Height298 mm (11.7″)Width185 mm (7.3″)Depth231 mm (9.1″)Net Weight4.73 kg (10.43 lbs)
Additional information
Weight | 5 kg |
---|---|
Dimensions | 19 × 30 × 23 cm |
