Product Description

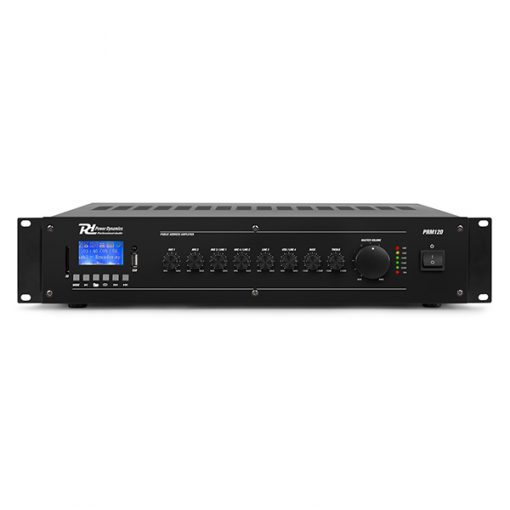

The PRM series is a series rack-mountable amplifiers that can either be used as 100V amplifier or as a standard low-impedance amplifier. These amplifiers are equipped with BT receiver and USB/SD ports for MP3 playback including a bright LCD display with ID3 Tag. All PRM amplifiers are also provided with a switchable XLR input with 24V Phantom Power, especially for paging and condenser microphones. Especially designed for applications such as paging, announcements, intercommunications, background music, broadcasting in industrial plants etc.

120W 100V 6-Channel mixer amplifier
MP3 Player with USB/SD slots
Using BT wireless technology for audio streaming
LCD control panel with ID3 tag
2x Mic/line inputs 6.3mm Jack, 2x RCA line inputs and 1x RCA line output
2x XLR microphone inputs with switchable phantom power (24V) and VOX priority
100V or 8 Ohm speaker output
Bass and treble controls
19″ Rack mountable (2U)
Emergency operation by 24V battery (not supplied)
Protections: Overheat, short circuit and power on delay
Emergency mute input
Including remote control

• Playback options: BT Streaming, SD-Card, USB
• Output power:RMS: 120W
• Impedance: 100V, 8ohm
• Frequency Response: 50Hz – 18.000Hz
• Signal-to-noise ratio: >75dB
• Signal-to-noise ratio:Line: >85dB
• Signal-to-noise ratio:Mic: >72dB
• Power Supply: 100-240VAC 50/60Hz
• Input level:Line: 150-470mV, 10kOhm
• Input level:Mic: 5-8mV, 600Ohm
• THD: <0,5%
• Dimensions (L x W x H): 432 x 88 x 345mm
• Weight : 9.1kg
• Accessories: Power Cable
