Description

Active DSP-Controlled Full Range Loudspeaker

The GT512A speaker has two combo inputs (2-way XLR and Mono jack 6.35). The CH A input can be switched between line balanced input or microphone input. The two audio sources can be internally mixed and output as a balanced output, transmitting the signal to multiple speakers for easy system signal cascading distribution.

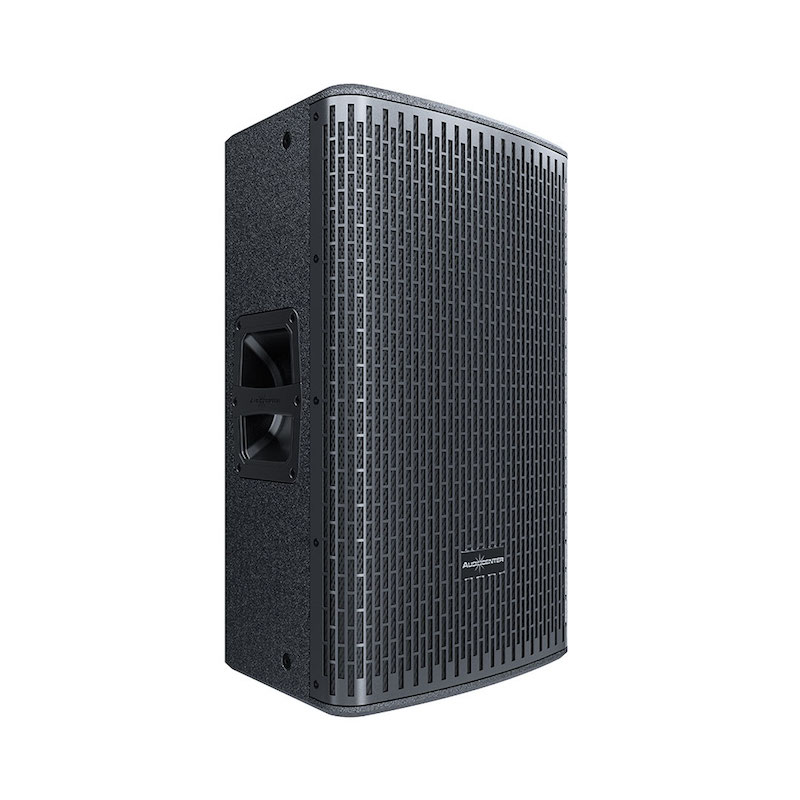

The cabinet is made of high-quality wood, with an innovative and compact multi-purpose symmetrical cabinet structure CNC machined. This provides clear and powerful perfect sound quality. The base mounting holes are available in 0° or 10° options. According to different installation locations and methods, the cabinet can meet different sound reinforcement installation environments.

Type: Active DSP-controlled full range loudspeaker
Frequency Response (-6dB): 45Hz-20kHz
Maximum Calculated: 128dB/134dB
SPU1 M (Continuous/Peak)

LF: Customized 12” driver, 3” voice coil
HF: Customized driver, 1.0” exit, 1.75” voice coil
Horizontal Coverage: 90°/60°
Vertical Coverage: 60°/90°

AMPLIFIER
Amplifier Circuitry: Class D
Power (Peak): 2200W
Frequency Response (1W 80 2ch): 20Hz-20kHz(±0.5dB)
Intermodulation Distortion: <0.05%
Total Harmonic Distortion: <0.05%
Protection: DC protection, short circuit protection, overheat protection, input overload protection, output overload protection, soft startup protection, overvoltage protection, under voltage protection.
Cooling System: Cooling with fans, air convection

DSP
Processor: 48kHz signal sampling frequency, FIR filtering
Presets: MAIN, LF BOOST, W/SUB

Output/ Input

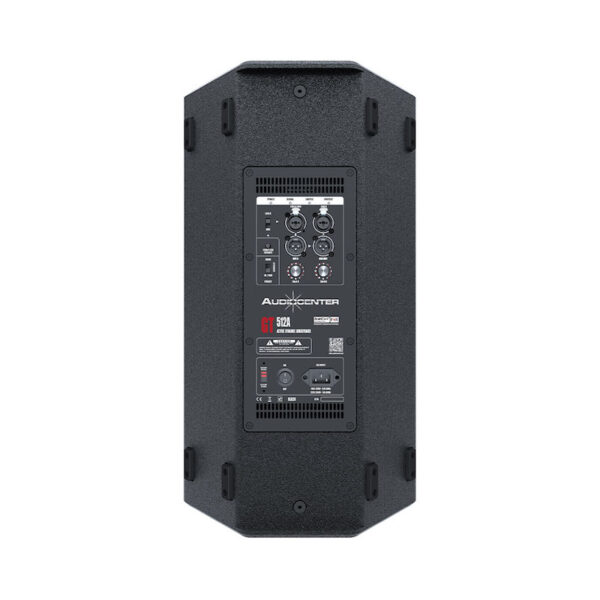

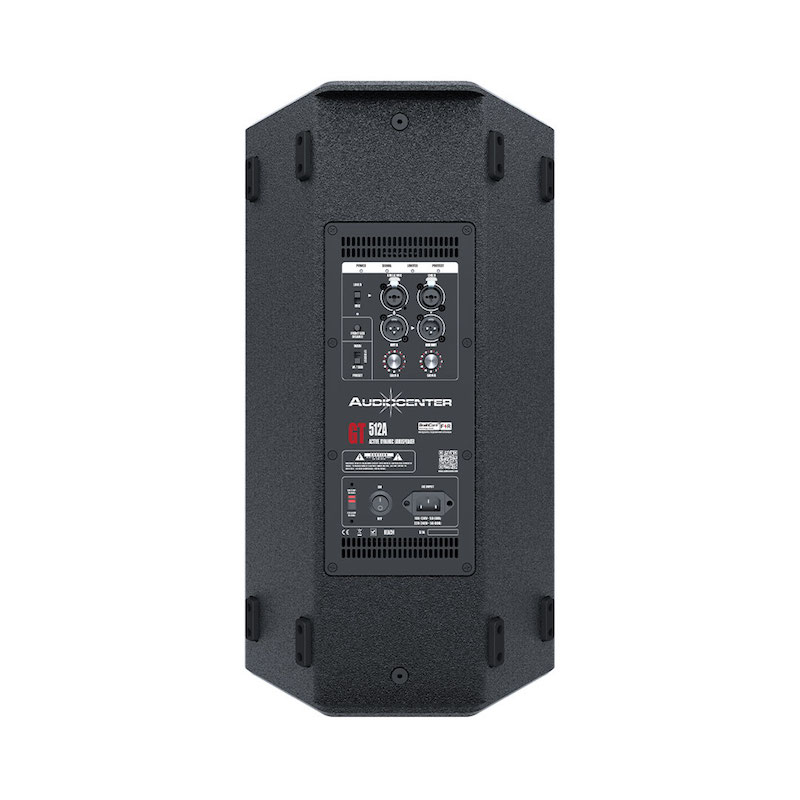

Signal Input: 2x female XLR, Mono jack 6.35,
Signal Output: 2x male XLR
Power Input: IEC power connector
Working Voltage: 100V-130V or 220V-240V (±10%,50/60Hz)
Power consumption ( 1 /8 output power): 95W

Cabinet
Cabinet Material: CNC machine plywood
Monitor Angle: Symmetrical 45° monitoring Angle
Hanging Hardware: MB screw
Pole Mount: Base hole Diameter 35mm, 0° or 10° options
Optional accessories: U bracket
Cabinet Colour: Black is the default colour.
Coating: Durable Polyurea Coating
Dimension (WxHxD): 355x599x349mm
Net Weight: 21.0 kg
