Description

Introduction
The PD series is a professional four-channel power amplifier with high technology,
premium sound performance and comprehensive protection system. It is a truly high-quality professional power amplifier.

The PD series power amplifier PD1000 power ranging 400~1000W (8Ω RMS stereo), suitable for professional entertainers with limited budgets but demanding the best performance.

Features
Comprehensive Protection System
Beautiful, dynamic sound
Class H system
Unique VLTM crossover circuit design
Efficient cooling system
Long-term stability
Low cost High performance

It is widely used in Bars, Nightclubs, Multi Function Halls, Museums, Religious Places, Speeches, Weddings. Plus other Fixed Installation
and Mobile Performance Venues.

Comprehensive Protection System

Advanced Linear Limiter Protection Circuit. Reduce the gain appropriately while maintaining sound quality integrity, protecting the speaker while ensuring the audience experience is not affected, avoiding distortion or downtime.

Soft-start Protection to Prevent Current Impact

DC Protection to Effectively Protect the Speakers
When the output terminal of the power amplifier detects the DC voltage, the protection circuit will cut off the output to protect the speaker from damage, and in the meantime the protection light of the channel will light up.

Short-circuit Protection to Effectively Protect the Power Amplifier.
If the output is short-circuited (for example, a defective speaker or speaker cables are crossed), the short-circuit protection circuit will automatically protect the power amplifier. The power amplifier will not resume work until
the short-circuit problem is solved.

Thermal Protection
When the heatsink or transformer has abnormally high temperature, it will trigger
the internal thermal protection of the power amplifier. The protected channel protection light will be on and the output of the channel will be turned off. Only when back to the normal temperature range, the protection
channel will deliver output.

Beautiful, dynamic sound
Clear high frequency with rich tone
Warm and round mid frequency, full of vocal charm
Steady and powerful bass

Class H system
The Class H system makes the power amplifier realize the conversion of low power track to high power track in microseconds, ensuring accurate output power without excessive loss.

Unique VLTM crossover circuit design
VLTM crossover circuit, designed as 24dB/oct, is connected with filter, which not only provides a good drive and feedback effect, but also ensures low total power consumption. The crossover point is 6dB, no need for phase switch. It is a good choice for subwoofer and small-sized sound system.

Efficient cooling system
The PD series power amplifier uses a stepless fan system, which guides air across the amplifier and draws cold air successively through the power transformer,
fan and radiator. It is equipped with four fans to keep the transformer in a cool state.

Long-term stability
In order to ensure product quality, PD series amplifiers components are carefully selected by professional engineers and senior purchasers. All components have undergone rigorous testing before assembly. Each power amplifier is tested thoroughly by the precise audio test equipments before shipment. The PD series power amplifiers can operate continuously with long-term stability.

Low cost high performance
The PD series power amplifiers have high cost performance that is difficult to be surpassed by other suppliers.

Output power (1kHz, THD+N =1%):
4 x 1200w @ 8Ω Stereo
4 x 1850w @ 4Ω Stereo
4Ω Bridge Not Recommended
2 x 3000w @ 8Ω Bridge
4 x 1000w @ 2Ω Stereo

A-Guard Protection System:
DC protection/Short circuit protection/
Smart overheat management/Overheat
protection/Output overload protection /
Soft startup protection/Limiter protection

Working Mode: Stereo/Parallel/Bridge

Crossover (High Pass/Low Pass): 120Hz,-3dB

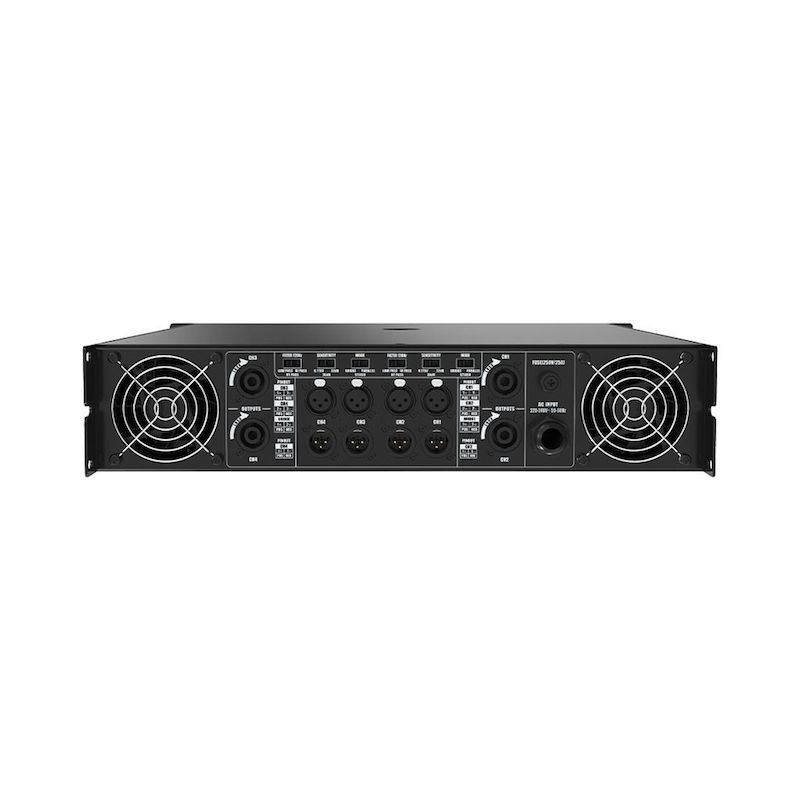

Input Connectors: Male XLR & Female XLR

Output Connectors: Speakon 4Pin

Input Impedance:  ≥20kΩ(Balanced),≥10kΩ(Unbalanced)

Maximum Input Voltage: ≥20dBu

Sensitivity: 0.775V / 32dB / 26dB

Frequency Response (1W 8Ω stereo): 20Hz-20kHz(±1dB)

Crosstalk (1kHz, Rated power 8 Ω A weighted): ≥60dB

S/N Ratio(Rated power 8Ω, A weighted): ≥100dB

Damping Factor (1kHz & 8Ω): ≥400

Intermodulation Distortion (60Hz:7kHz=4:1,half power): ≤0.1%

THD+N (1kHz,8Ω half power A weighted): ≤0.05%

Output Circuitry: Class AB

Power Supply: 100-130V~/220-240V~(±10%,50/60Hz)

Power Consumption (1/8 output power): 780W

Rack Space: 2U

Cooling: Back to front venting, mandatory cooling

Dimension (W×H×D): 483×88×384mm

Net Weight: 27.0kg
