Description

Cordless Microphone System – 4 x Handheld

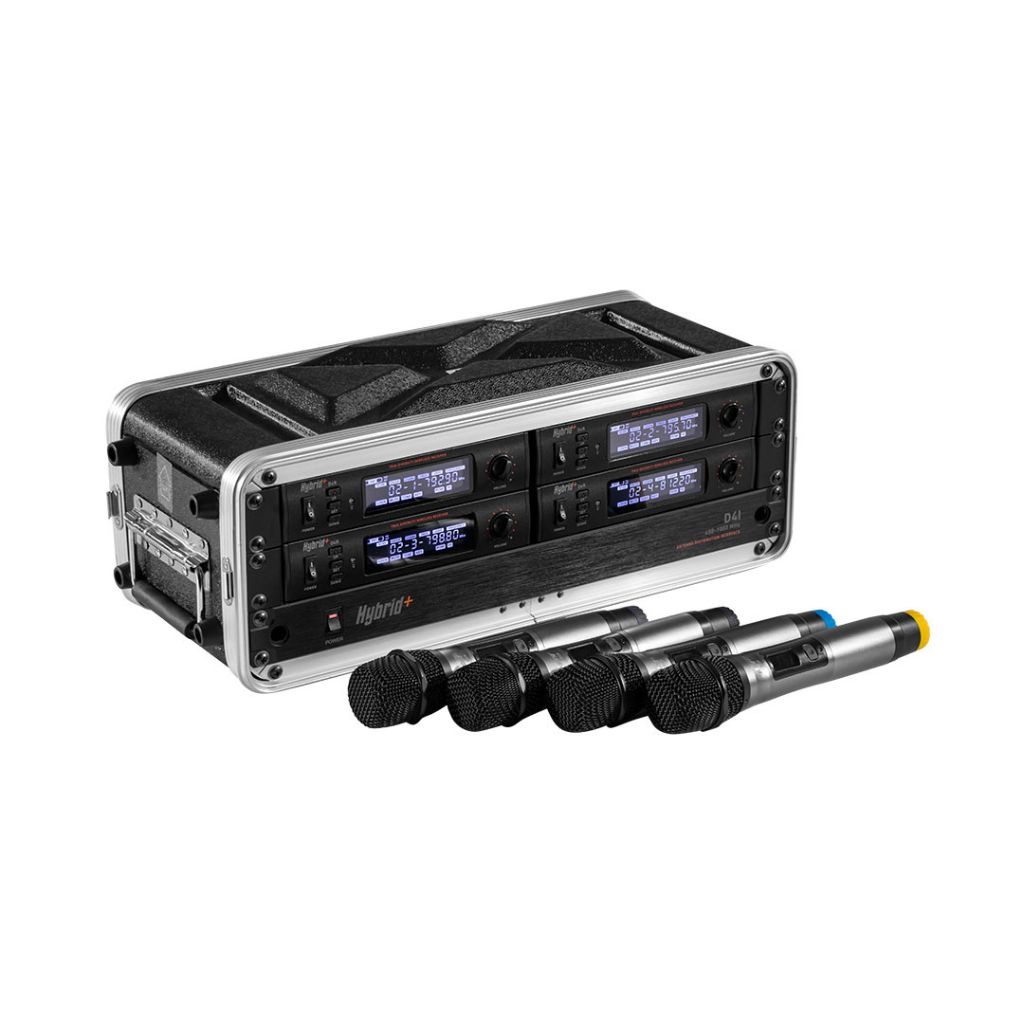

The Hybrid+ Diversity 4.0 is a complete true diversity cordless microphone system with four handheld transmitters, four separate receivers, an antenna distribution interface and two long-range paddle antennas with stands. The system is pre-connected and housed in an ABS 6U short format flight case. Being a true diversity system and equipped with long range paddle antennas, the Diversity 4.0 is extremely reliable and most suited for on-stage performances.

Diversity 4.0

Receivers: 4 x UHF, True diversity, Large LCD screen, Volume control, Channel & Frequency set controls, Infra-red synchronisation
Receiver Construction: Black metal housing, 1U, Half-19″ rack mount
Receiver Channels: 30 Groups, 8 Channels per group, Total 240 Selectable frequencies
Receiver Outputs: XLR Balanced , 1/4″ Jack Unbalanced
Receiver PSU: Supplied by Antenna Distribution Interface unit (12-18V DC, 1.5A)
Receiver Antenna: 2 x Directly connected to Antenna Distribution Interface unit
Receiver Model: D4R

Antenna Distribution Interface: 1
Antenna Distribution Interface Construction: Black metal housing, 1U, 19″ rack mount
Antenna Distribution Interface PSU: External unit, 12V DC, 5A
Antenna Distribution Interface Model: D4I

Transmitters: 4 x Handheld, LCD screen, Mute function, Infra-red synchronisation
Transmitter Construction: Metallic grey metal housing with black metal mesh capsule cover
Transmitter PSU: 2 X 1.5V AA Batteries, (Included)
Transmitter Model: D4H

Paddle Antenna: 2, Model: D4AB
Paddle Antenna casing: ABS moulded with foam, included
Paddle Antenna stands: 2, included
